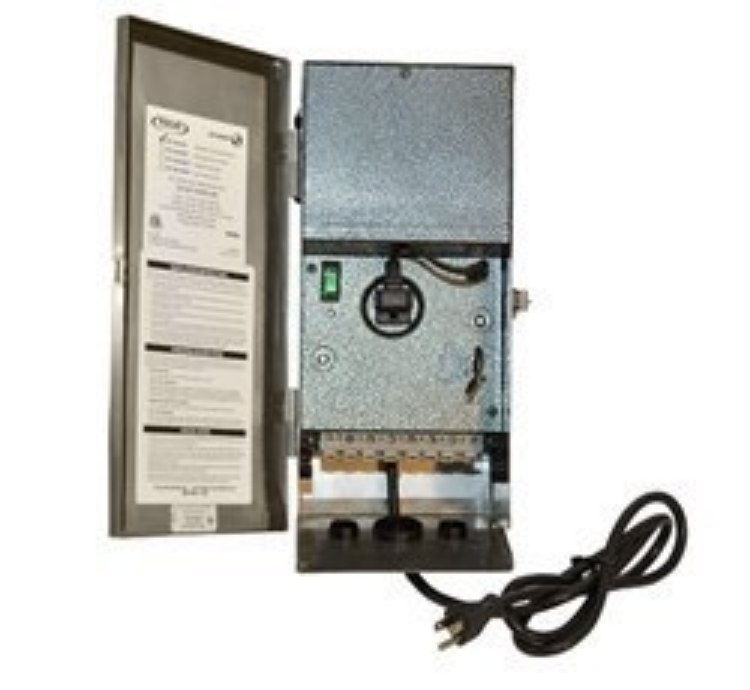

120W Above Grade Transformer, Multi-Voltage Output Taps 12.5V, 13.5V and 14.5V Finish

SKU: RXT-12-120MV
Parte de Fabricante: RXT-12-120MV
4,400 MXN
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

MATERIAL/FEATURES
• UL 1838 listed, the standard for low voltage landscape lighting systems

• 60, 120, 180, 300 and 600 watt output models available

• Multi Voltage output standard(12.5, 13.5 & 14.5 Volts)

• Super Terminal Lugs with capacity of 3 x #8, 5 x #10, 7 x #12 or 9 x #14 gauge wire

• 304 Stainless Steel enclosure with No. 4 brushed finish

• Removable hinged door is lockable and weather sealed

• Above grade, NEMA 3R rated, rain tight enclosure

• LED indicators for instant recognition of 120v and 12v power

• Timer Ready standard (for plug in timers)

• Optional Mechanical Timer (-T), Digital Timer (-DT) and Astro Timer (-AT) face plates can be factory or field installed

• Photocell Ready with quick connector (not on -AT models)

• Supplied with two 1/2" conduit (trade size) holes & one 1-1/2" inlet with plugs in bottom panel plus 2 side panel 1/2" conduit (trade size) holes with plugs

• Break away bottom panel swings down for easy access wiring

• 11 gauge cold rolled steel ‘L’ brackets for stable mounting

• Mounting plate and hardware included

FINISH
• Brushed Stainless Steel

ELECTRICAL
• Long life, high efficiency 266°F (130°C) class ‘B’ rated transformer core

• Copper Shielded isolation/insulation; No contact between 120v and 12v windings

• 1500v Isolation between all windings and ground

• Grade M19 electric grade steel for superior electrical and magnetic properties

• Single phase, open core and coil

• E.L. laminated core has concentric winding and is protected by 180°C thermal switch.

• Double vacuumed impregnated with black slate flour

• Filled varnish for superior heat dissipation and noise reduction - Class 180°C

• 120v primary, 12.5v secondary 50/60 Hertz/cycle (standard)

• 6 foot 18/3 SJT-WA weatherproof grounded power cord (120v)

• ON/OFF control via rocker switch on 120v side

• Extra heavy duty (80 amp) terminal lugs

• Manually resettable circuit breakers on front panel for overload and short circuit protection
